TM 53-70 MIL/Super Scorpion

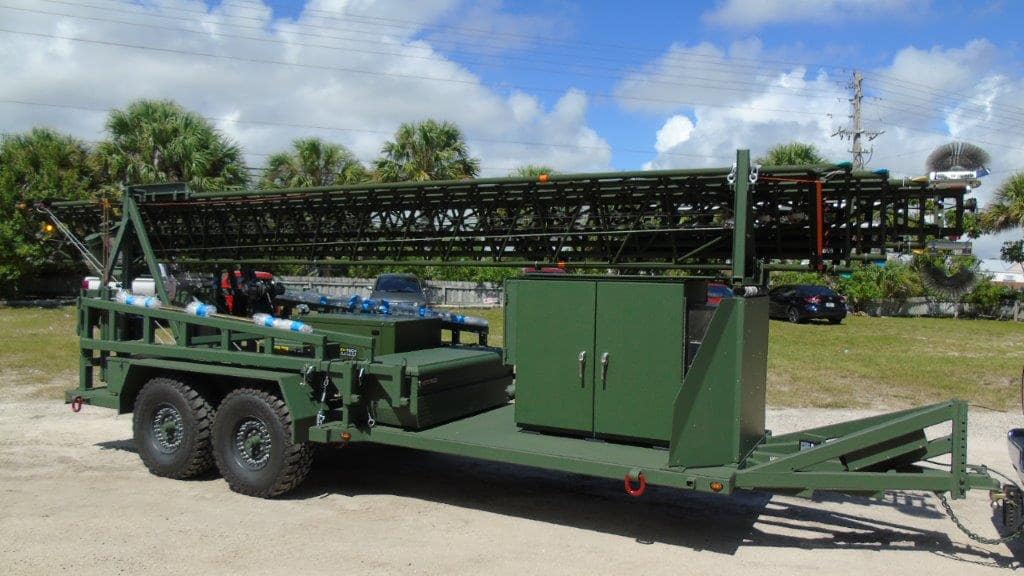

Aluma green military trailer system on wheels with unguyed telescoping tower on top

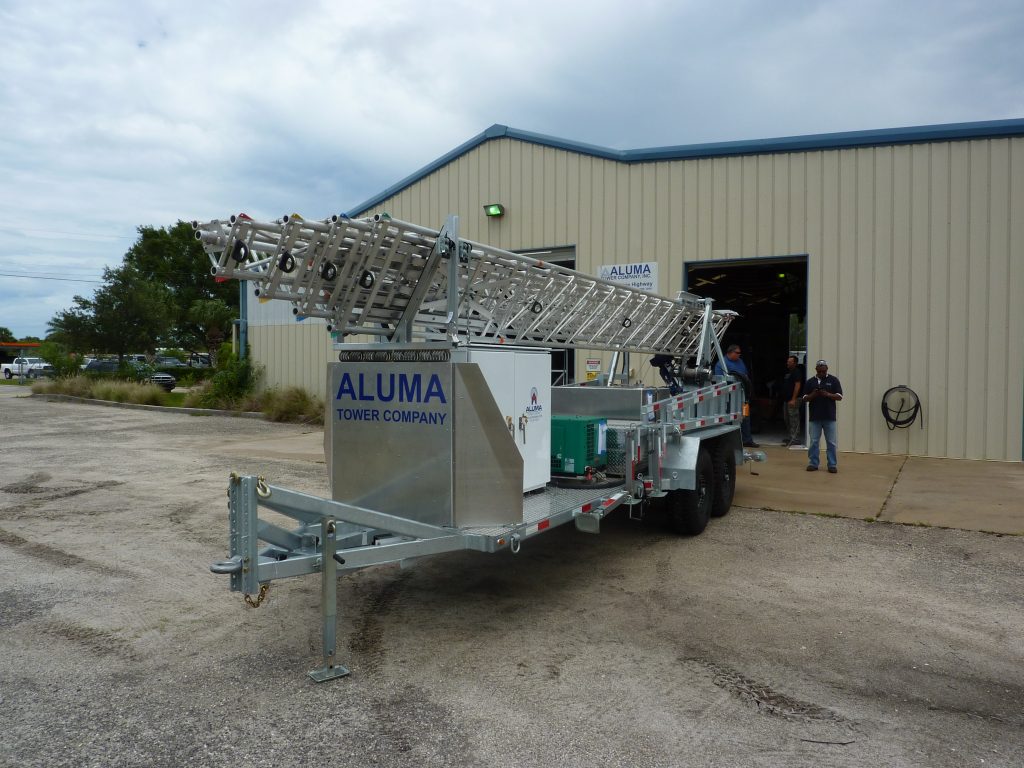

Super Scorpion® Unguyed Telescoping Tower System

Aluma has extensive experience manufacturing military trailer tower systems (both COTS and COTS-based NDI) that can withstand the harsh environments of today’s battlefields yet are quick and easy to operate, lightweight and highly mobile, rugged, reliable, and above all, safe. Among Aluma’s largest customers are the US Government (Department of Defense, FEMA, and State Department), Telecom Service Providers, First Responders, Emergency Management and Surveillance companies.

Aluma engineers designed this system with all the features of the standard Scorpion so that it can withstand harsh environments. They added additional features to ruggedize and enhance the unit’s capabilities.

One of the newest self-supporting antenna masts in our arsenal is the Scorpion® platform trailer tower. One of our best sellers, this unguyed telescoping tower system offers rapid deployment and mission readiness in a self-contained package.

The Super Scorpion is a lightweight, portable aluminum trailer tower equipped with our patented unguyed telescopic antenna tower mast. It is C-130 certified for aircraft transport. Tower masts are available up to 106 ft (32 m) and offer numerous accessories including generators, radio enclosures, and grounding systems so that the unit can be outfitted to the customer’s specifications. These rugged Scorpion® portable aluminum trailer towers can be set up in about 15 minutes by two capable people. They have a small footprint when fully deployed. Heli-hooks are an available option to provide easy airlift transport via helicopter to remote areas.

Below you will find the enhancements made to the original “Scorpion” design to create the more robust “Super Scorpion.”

MIL-STD-810G & TOP-01-1-011A Certified Trailer

MIL-STD-810G

High and Low Temperature
Solar Radiation
Rain
Humidity
Sand & Dust

TOP-01-1-011A

Belgium Block
Imbedded Rock Course
2 in Washboard
2-4 in Radial Washboard
3 in Space Bump
Perryman No. 2
Perryman No. 3

Download the List and details of the tested performed on the Scorpion Trailer with a T2-100UG

Super Scorpion® Features & Options

Double bracketed torsion axles
HMMWV tires & wheels with sealed wheel wells
Vibration isolation package
ECU/HVAC isolation package
Adjustable tongue height & multiple voltage electrical brakes
Road debris shield
MIL-STD-810G Communication Cabinet
Heavy-duty, super quiet, diesel generator with maintenance cycle of up to 1000 hrs
Fuel tank can run continuously for up to 15 days
Built with non-corrosive materials including aluminum, stainless steel and zinc plated steel
Up to 106 ft (32 m) Telescopic, self-supporting (unguyed), light-weight, corrosion resistant aluminum tower.
Can be safely & rapidly deployed in under 15 minutes by two capable people
Tower features continuous engaging and locking safety mechanism
C-130, C-5 & C-17 certified unit
GVWR of 14000 lb allows trailer to be towed by commercial truck (F-250 or equivalent)
Meets all US Federal DOT and FMCSA requirements and built to NATM compliance
Easy access to all trailer components
Capable of holding multiple size generators
Multiple redundant safety features, including the tower’s IP55 Rated motor and series of limit switches and interlocks to prevent over-extension, over-retraction, and over-tilting
Low center of gravity makes the system perfect for unimproved roads
18 cu ft waterproof storage enclosure for all equipment and tools needed for setup. No special tools needed
SMART Tower and SMART generator capabilities
Trailer platform size allows for maximum maneuverability and mobility for urban and rural deployments
Low cost of ownership with excellent Deployed Operation Availability and Mean Time Between Failure

Self-Supporting Antenna Mast

T2-100UG is the most deployed 106Ft (30M) Unguyed Aluminum Telescopic tower in the world. This tower model has been deployed in over 65 countries worldwide

Model	T2-100UG
Tower Construction	American Aircraft Aluminum 6061-T6
No. of Sections	4
Sections ID	F2, E2, D2 & C2
Length of the Section	30 ft
Sections Overlap	7 ft
Overlap Reinforcement System	Radial Pressure Slide Bars (Patent# 8,046,970)
Maximum Height w/o Mast	100 ft
Standard Mast Length	8 ft
Maximum Height w/ Mast	106 ft
Nested Height w/o Mast	31.5 ft
Raising System	AC or DC Winch (Multiple Voltage Available)
Tilting Mechanism	AC or DC Winch (Multiple Voltage Available)
Type of Retraction	Positive
Winch Manual bypass	Yes
Lockable Mechanism	Yes – Safety Stop
Multiple height Lockable	Yes – Every 20”
Multiple Safety Redundancy	Yes
Tower Operations Temperature	-40°F / +120°F
Maximum Pay Load*	Call for more Info
Maximum Wind Load (Sail Area)*	Call for more Info
Maximum Wind Speed*	Call for more info
Approximate Tower Weight
